Sharebot metalONE

Direct Metal Laser Sintering (DMLS) metal 3D printer, an open system designed for research that lets you change spot size, laser speed and power and precisely control printing paths. Allowing you to freely perform multiple tests on various types of alloys.c

Choose the Topic to explore:

Choose the Topic to explore:

Explore the main features of metalONE

Start a print job in less than 15 minutes

Produce your own alloys

An open system designed for research

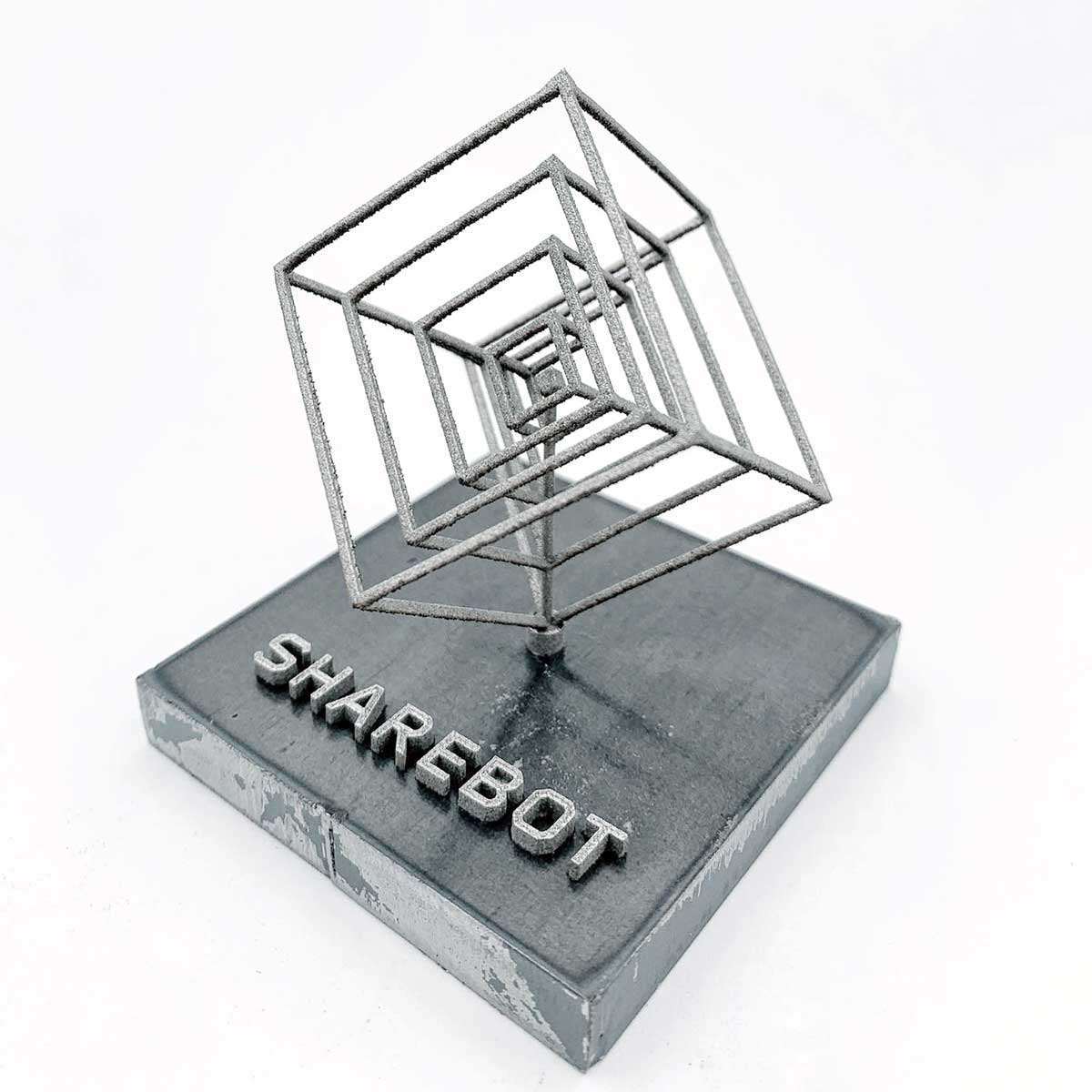

See some of our test object

Lattice

Trabecular

Specimens

Copper

Research

Industry

Dental

metalONE Test Print

Jewelry

Machine Specs and Features:​

  •
  • TECHNOLOGY:   LPBF Laser Powder Bed Fusion
  •
  • DIMENSIONS: 1050 x 600 x 1500 mm
                                41.3 x 23.6 x 59.0 in
  • WEIGHT:  ca 315 kg (700 lb)
  • PRINTING VOLUME: 65 x 65 x 100 mm (maximum)
                                         2.56 x 2.56 x 3.93 in (maximum)
  • Z RESOLUTION: 30 microns (0.0012 in)
  • SPOT DIMENSION: 40 microns (0.0018 in)
  • LASER: Fiber (1064nm) – 300W
  • GAS CONSUMPTION: 2.5 l/min (84.5 fl/oz/min)
  • GAS: Nitrogen – Argon
  • MINIMUM POWDER LOAD: 800 g (1.76 lb)
  • NETWORK CONNECTION
Some characteristics may change for technical reasons

Features

– Open parameters

– Remote control

– Define laser movements with Gcode

– Lan connectivity

– Build in camera

– Test mode for faster parameter search

– Log file



Warranty one year

Technical support included for one year

Extended warranties and remote support option available



We are open to discuss your needs and modify the machine

News from Sharebot

Sharebot metalONE Auckland Preview

First Copper Prints

Sharebot ICMATE Preview

Copper Testing

Sharebot metalONE Dortmund

316L Evaluation

Sharebot metalONE Politecnico di Torino

316L Characterization

Poster from some Sharebot's Customers

Example LOG files generated by the printer

Example LOG files generated by the printer

Remote Control via Sharebox our web interface

Sharebox metalONE Dashboard

Monitor the processes

Layer View Sharebox

Single layer view

Sharebox metalONE GCODE

Manage GCODE files

Need more information? Contact us
