Sharebot SnowWhite 2

SHAREBOT SNOWWHITE2

SHAREBOT SNOWWHITE2

Selective Laser Sintering (SLS) Professional 3D Printer OPEN PARAMETERS Equipped with a 14W CO2 laser and the possibility to use nitrogen or argon in a modified environment, Sharebot SnowWhite2 is the ideal tool for universities and research centers that study or develop new polymers and composites

Settings,  manual, test, images

if you don’t have password, please ask

Choose the Topic to explore:

IIT.it : A solution for small quantities

They had some very special powder to sinter with complex production cycle. So we realized a powder distributor with a small build area, and we printed a usable specimen test.

UU.nl : Blade or Roller

They ask the possibility to use blade or counter roller for a special powder. We made a solution with a roller where is possible to  modify rotation speed from 0 to 100 rpm and from software the  rolling directions

Explore the main features videos of SnowWhite2

Start a print job in less than 15 minutes

Just use 300g of powder

Settings without limits

See some sample test prints

PA12

PA11

TPU

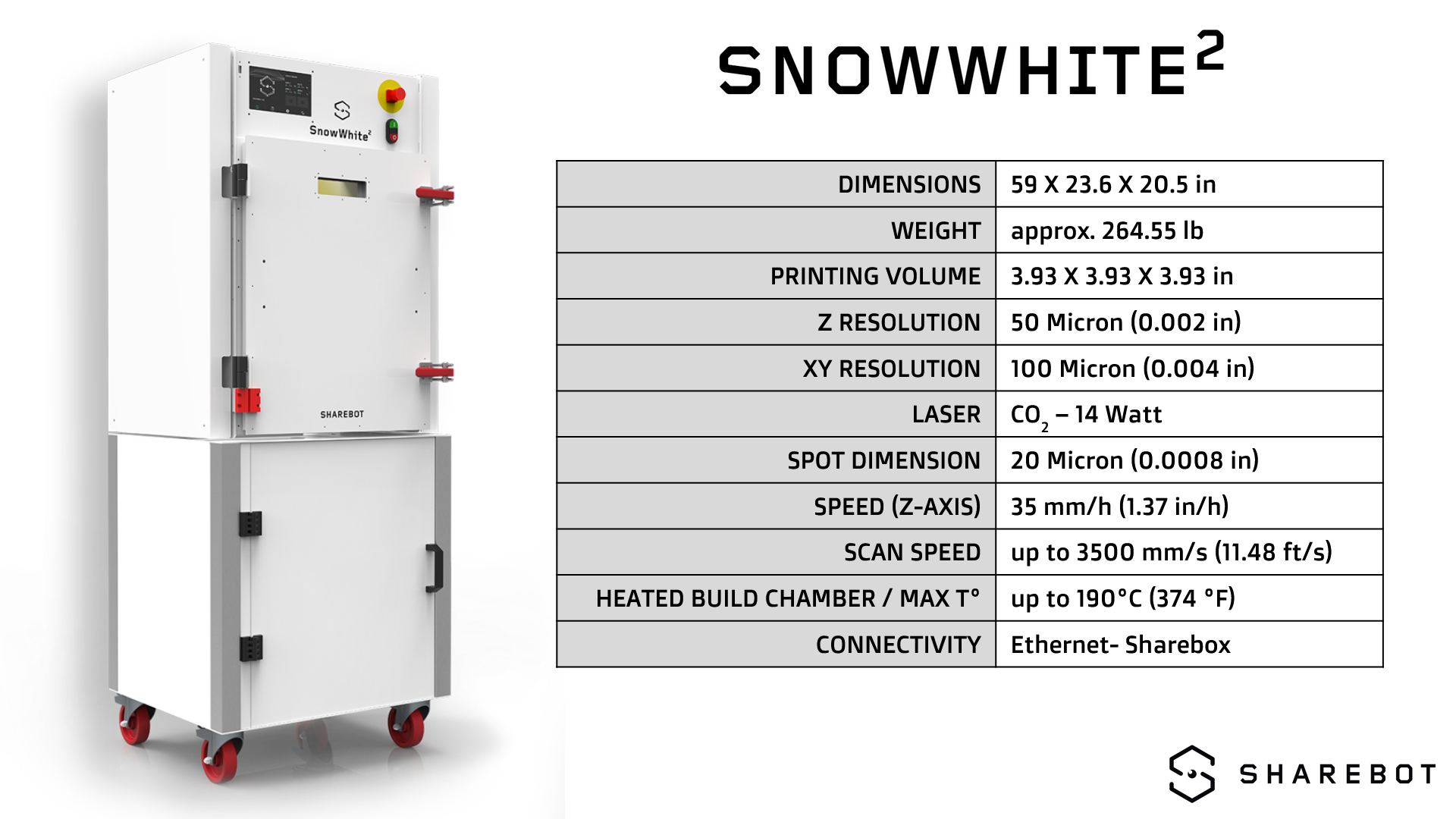

Machine Specs and Features:

DIMENSIONS: 1500 x 600 x 600 mm
WEIGHT:  ca 120 Kg
PRINTING VOLUME: 100 x 100 x 100 mm (maximum)
Z RESOLUTION: 50 microns
XY RESOLUTION: 100 microns
LASER: CO2 (10640nm) – 14W
BUILDING SPEED (Z): up to 35 mm/h
SCAN SPEED: up to 3500 mm/s
HEATED CHAMBER: up to 190 °C
NETWORK CONNECTION

Some values may change for technical reasons

Galvanometer system with f-Theta lens

Define laser movements with GCODE

All printing parameters are open

Remote controllable

Log file available at the end of each process


SnowWhite2 MULTI-MATERIAL

A new feature of SnowWhite2. With an update it is now possible to use two different materials for the creation of sintered objects (SLS).

Researchers will now have the possibility to control both the movement of the recoater and of each single powder distribution tank through intuitive and easy-to-manage commands, so from today they will have the possibility to test and create multi-material objects in a simple and intuitive way.



SnowWhite2 documents

Example LOG files generated by the printer

Remote Control via Sharebox web interface

Sharebox SnowWhite 2 Dashboard

Monitor the processes

Sharebox SnowWhite 2 GCODE

Upload and manage GCODE files

Sharebox SnowWhite 2 Profiles

Upload and manage print profiles

Sharebox SnowWhite 2 Logs

Manage LOG files

Scientific Publications we helped to achive with SnowWhite2

Patents we helped to achieve with SnowWhite2

Need more information? Contact us
