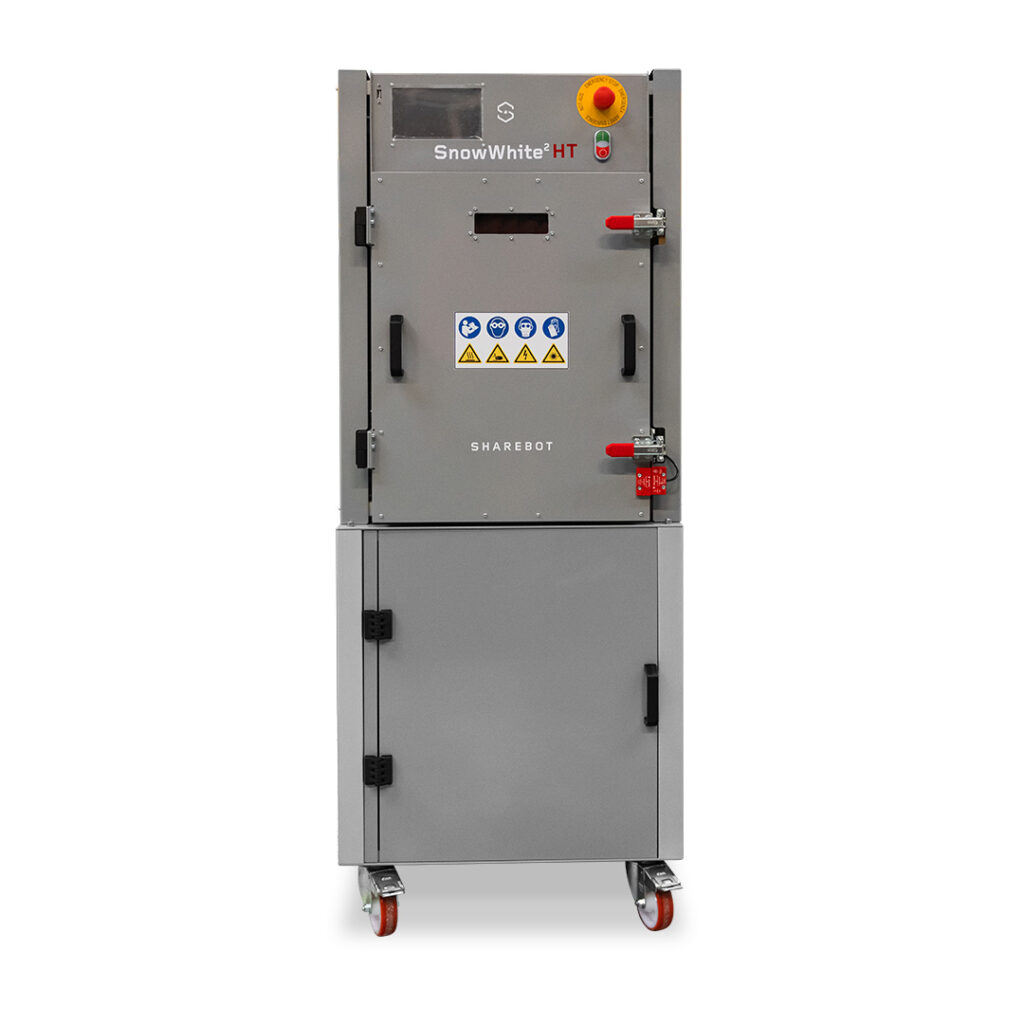

SHAREBOT SNOWWHITE2 High Temperature
SHAREBOT SNOWWHITE2 HT
Selective Laser Sintering (SLS) 3D Printer with a maximum operating temperature of 350°C, OPEN PARAMETERS . Equipped with a 14W CO2 laser and the possibility to use nitrogen or argon in a modified environment, Sharebot SnowWhite2 HT is the ideal tool for universities and research centers engaged in the study or development of new polymers and composites.
Settings, manual, test, images
If you don’t have password, please ask
Ask anything you want to know about SnowWhite.
Machine Specs and Features:
DIMENSIONS: 1500 x 600 x 600 mm
WEIGHT: ca 150 Kg
PRINTING VOLUME: 50 x 50 x 50 mm (maximum)
Z RESOLUTION: 50 microns
XY RESOLUTION: 100 microns
LASER: CO2 (10640nm) – 14W
BUILDING SPEED (Z): up to 35 mm/h
SCAN SPEED: up to 3500 mm/s
POWDER BED: up to 350 °C
BUILD CYLINDER: up to 350 °C
LOAD CYLINDER: up to 350 °C
NETWORK CONNECTION
Some values may change for technical reasons
Stable temperature in build area
Designed for thermal camera installation
Temperature control for power and cylinders
Galvanometer system with f-Theta lens
All printing parameters are open
Log file available at the end of each process
Example LOG files generated by the printer
Dashboard for Local and Remote Control
Dashboard on the LCD
Monitor the process using your browser
Upload and manage print profiles
